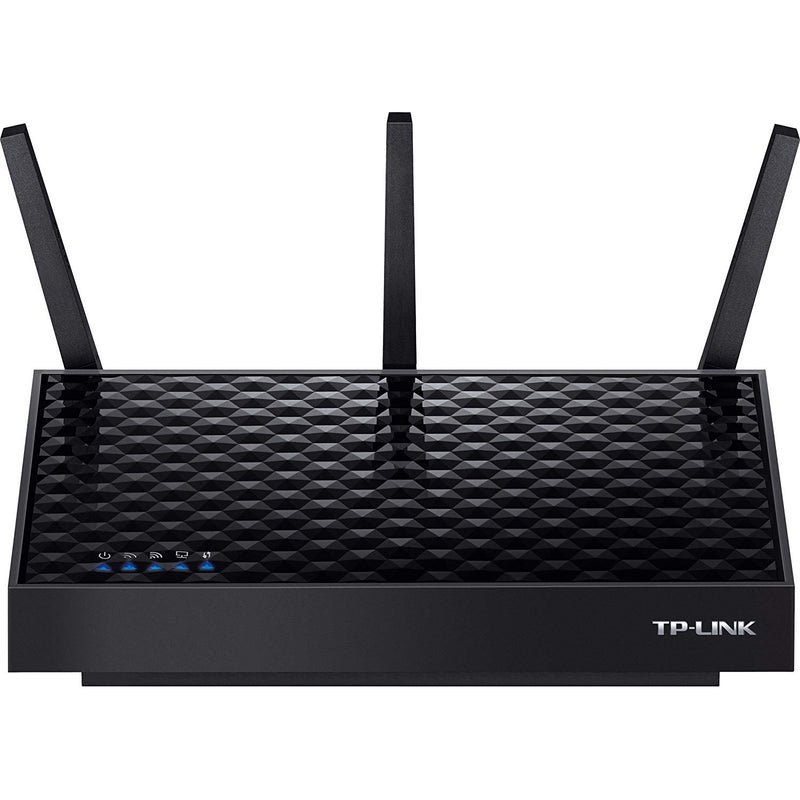

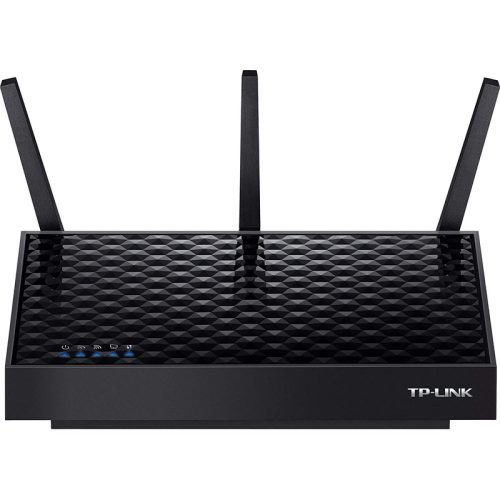

Tp-link AC1900 Wireless Gigabit AP 5GHz
The TP-Link AC1900 Wireless Gigabit AP/Router (Model No. Archer C9) is a wireless router that supports wireless speeds of up to 1900Mbps (1300Mbps on the 5GHz band and 600Mbps on the 2.4GHz band).
The 5GHz band is ideal for Ultra-HD streaming video and online gaming, while the 2.4GHz band is there for all of your everyday Internet needs, like sending email and browsing the Internet.
For attaching external storage or printers, it also has four Gigabit Ethernet ports, a USB 3.0 port, and a USB 2.0 port. Advanced wireless security features like WPA/WPA2 encryption and a built-in firewall are also supported by the router.
It also has a 1GHz dual-core processor to provide lag-free network performance and simple management. Additionally, it incorporates Beamforming technology, which expands the network’s total wifi range, speed, and stability.
Features of the Tp-link AC1900 Wireless Gigabit AP500
- 4 external antennas for better coverage and performance
- Dual-band wireless for reduced interference
- Beamforming technology for stronger, more reliable wireless connections
- 2 USB ports for media sharing and storage
- Easy setup and management with the TP-Link Tether app
HARDWARE FEATURES | |
---|---|
INTERFACE | 1 * 10/100/1000Mbps Ethernet Port (RJ45) |
BUTTON | WPS Button, Reset Button, LED Button, Power Button |
EXTERNAL POWER SUPPLY | 12V/2.5A |
DIMENSIONS ( W X D X H ) | 9.5 X 6.4 X 1.7 in. (242 X 162 X 44mm) |
ANTENNA | 3 dual band detachable antennas |
WIRELESS FEATURES | |
---|---|
WIRELESS STANDARDS | IEEE 802.11a/ac, IEEE 802.11b/g/n |
FREQUENCY | 2.4GHz & 5GHz(11ac) |
SIGNAL RATE | 2.4GHz: Up to 600Mbps 5GHz: Up to 1300Mbps |
RECEPTION SENSITIVITY | 2.4GHz: 11g 54M: -76dBm@10% PER 11n HT20 MCS7: -73dBm@10% PER 11n HT40 MCS7: -71dBm@10% PER 5GHz: 11a 6Mbps:-94dBm@10% PER 11a 54Mbps: -75dBm@10% PER 11ac HT20 MCS8: -66dBm@10% PER 11ac HT40 MCS9: -62dBm@10% PER 11ac HT80 MCS9: -59dBm@10% PER |
WIRELESS MODES | Access Point, Repeater (Range Extender)/Bridge with AP, Client, Multi-SSID |
WIRELESS FUNCTIONS | Wireless Statistic, Concurrent Mode boost both 2.4G/5G WiFi band, LED Control, Domain Login Function |
WIRELESS SECURITY | 64/128-bit WEP, WPA/WPA2, WPA-PSK / WPA2-PSK |
TRANSMISSION POWER | FCC: <30dBm |
Tp-link AC1900 Wireless Gigabit AP Video Review
TP-Link Support Center.
TP-Link Access Point Frequently Asked Questions (FQAs)
How to find the hardware version on a TP-Link device?
Why Do I Fail to Access tplinkwifi.net?
Not Connected to the Router: Make sure your client is connected to your TP-Link Router’s network, via wired or wireless connection. Tplinkwifi.net is an internal only management utility and you can only access if you are connected to the router’s network.
