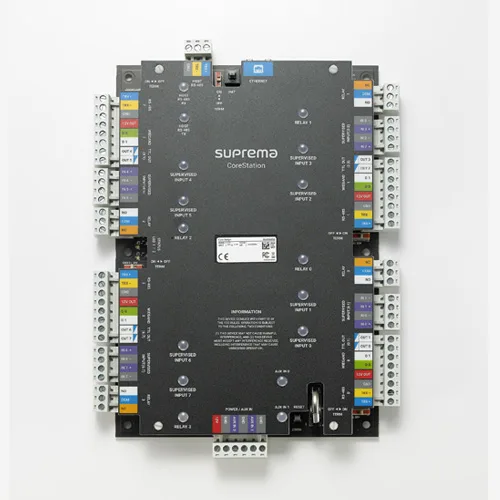

Suprema CS-40 CoreStation Biometric Access Controller.

The benefits of biometric-enabled security over centralized access control systems are offered by the Suprema CoreStation smart door controller. The CoreStation, which is built for enterprise-level systems, can manage up to 500,000 users and has a remarkable 400,000 match/sec fingerprint matching speed. With the capabilities of high performance, Ethernet networking, and biometric preparedness, CoreStation can provide all of the BioStar2 platform’s features.

 Suprema CS-40 CoreStation Biometric Access Controller Features

Centralized Biometric Access Control

Centralized storage for user and access control data including fingerprint credentials.

Multi-port interface for fingerprint /RF readers

Supports locks, sensors, RTE, and alarm devices.

Improved Security

• Centralized, secure storage of biometric and access group data
• No Ethernet connection to the edge devices
• No data stored on the edge devices
• Secure communication via TLS 1.2
• AES-256 encryption

System Flexibility and Scalability

• OSDP 2.0 compatible
• Elevator control with OM-120
• Supports up to 132 access points with DM-20 and Secure I/O 2 (132 x Wiegand readers/64 x RS-485 readers)
• 3rd party Wiegand reader
• 4ch onboard reader control (Wiegand, RS-485, relays, inputs, outputs, power out, AUX)
• Leverages existing wiring
