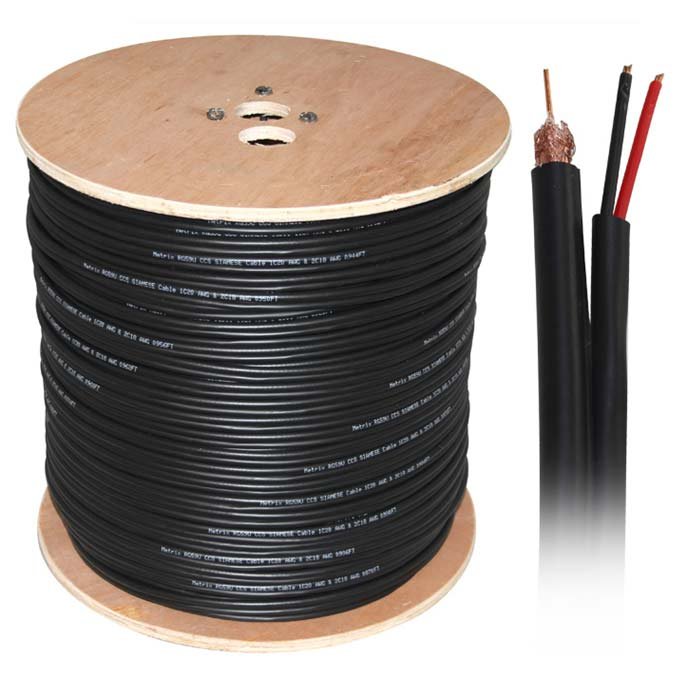

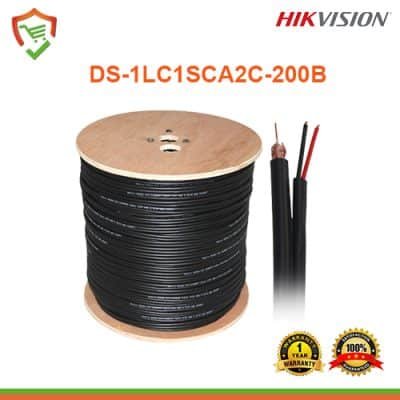

Hikvision RG59 Coaxial CCTV Cable with Power Cable, DS-1LC1SCA2C-200B

The expert’s option for CCTV systems is the Hikvision RG-59 Coax cable. By connecting the RG-59 Coax with the 18/2 power for a single cable pull, it offers both video and power. Additionally, it saves time and money because installers can use a single cable to power and transmit footage to security cameras. Both simple analogue TV antenna feeds and AHD CCTV systems can use it. This cable saves time by combining the power and video cables into one jacket rather than requiring you to run two separate lines.

The Hikvision RG59 has been available on the market for a while. This wire is frequently used to link CCTV cameras. Another name for this wire is “Siamese coaxial cable.” A 2C power cable and an RG59 cable have been combined to create this cable. This kind of cable allows you to concurrently run the power and video for your security cameras, thereby halving the installation time. This cable works well in both indoor and outdoor settings.

The RG59 CCTV cable’s braided shielding is built to protect against long wave megahertz interference. This makes it suitable for signals with lower frequencies, such as those below 50 MHz. Typically, composite or component video signals are utilized with it. Because of this, a closed-circuit television (CCTV) video surveillance system would be wise to use it.

• Hikvision RG59 Coaxial CCTV Cable 100M
• Hikvision RG59 Coaxial CCTV Cable 200M
• Hikvision RG59 Coaxial CCTV Cable 500M

Hikvision Coaxial Cable with Power Cable Specifications

• 200m RG59 coaxial cable with power cable
• Conductor material of Coaxial cable is OFC (Oxygen Free Copper)
• Braiding material of Coaxial cable is CCA (Copper-clad Aluminum)
• Conductor material of power cable is OFC (Oxygen Free Copper)
• VW-1 flame retardant rating
• Excellent anti-interference performance
• Excellent anti-aging performance
