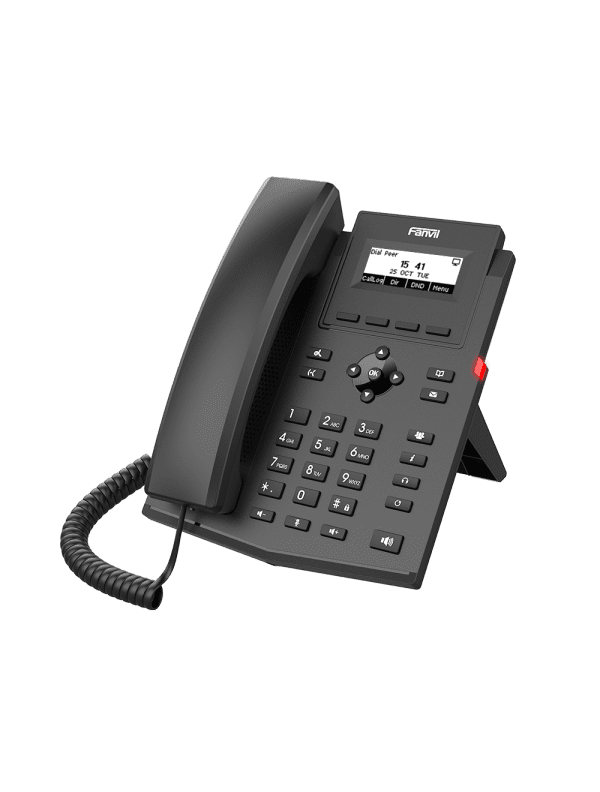

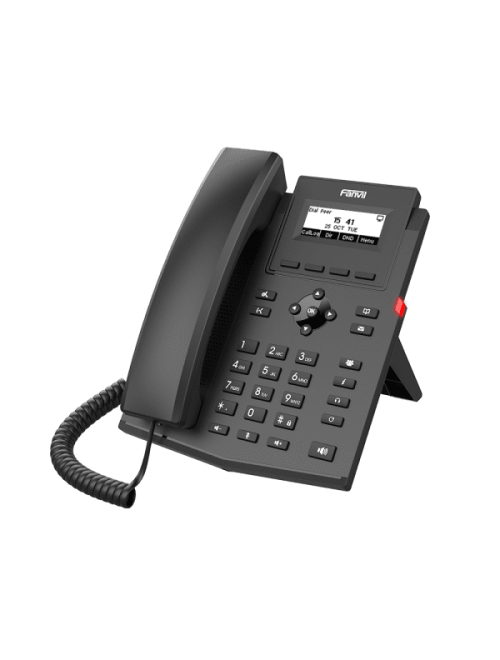

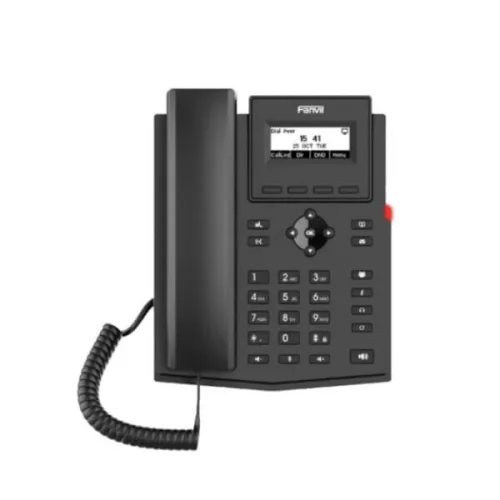

Fanvil X301P Entry Level IP Phone

The multifunctional, reasonably priced SIP phone is the Fanvil X301/X301P. To provide a user-friendly experience, it has a 2.3-inch 128×48 pixel dot-matrix display that supports two SIP lines and a six-way audio conference. With features like integrated PoE (only on X301P), dual 10/100 Mbps network ports, and HD audio, the X301/X301P offers businesses an effective and superior business communication solution.

Fanvil X301P – Technical Specifications

Generic

• 2 SIP Lines
• HD Voice
• PoE Enabled(only X301P)
• Dot-matrix display screen
• Handset / Hands-free / Headset mode,
• Desktop Stand / Wall mountable (optional)
• Optional External Power Supply

Phone Functions

• Local Phonebook (1000 entries)
  Remote Phonebook (XML/LDAP, 1000 entries)
• Call logs (In/Out/Missed, 600 entries)
• Blocked List/Allowed List
• Voice Message Waiting Indication (VMWI)
• Programmable DSS/Soft keys
• Network Time Synchronization
• Support Plantronics wireless headset, (Through PlantronicsAPD-80 EHS Cable)
• Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
• Support Recording (Through Server)
• Action URL / Active URI
• uaCSTA
• Wideband Codec: G.722, Opus
• Full-duplex Acoustic Echo Canceller (AEC)
• Voice Activity Detection (VAD) / Comfort Noise Generation (CNG)/ Background Noise Estimation (BNE) / Noise Reduction (NR) /Automatic Gain Control (AGC)
• Packet Loss Concealment (PLC)
  Dynamic Adaptive Jitter Buffer
• DTMF: In-band, Out-of-Band (RFC2833/ SIP INFO)
• VQM voice quality monitoring

Call Functions

• Call out / Answer / Reject
• Mute / Unmute (Microphone)
• Call Hold / Resume
• Call Waiting
• Intercom
• Caller ID Display
• Speed Dial
• Anonymous Call (Hide Caller ID)
• Call Forward(Always/Busy/No Answer)
• Call Transfer (Attended/Unattended)
• Call Parking/Pick-up (Depending on server)
• Redial
• Do-Not-Disturb
• Auto-Answering
• Voice Message (with server)
• 6-way Conference
• Hot Line
• Hot desking

Audio

• HD Voice Microphone/Speaker
• Wideband ADC/DAC 16KHz Sampling
• Narrowband Codec: G.711a/u, G.723.1,G.726,G.729A/B, iLBC
• Syslog

Network

• Physical: 10/100 Mbps Ethernet, dual bridged port for PC bypass
• IP Mode: IPv4/IPv6
• IP Configuration: Static IP / DHCP / PPPoE
• Network Access Control: 802.1x
• VPN: L2TP / OpenVPN
• VLAN
• LLDP
• QoS
• RTCP-XR (RFC3611), VQ-RTCPXR (RFC6035)
