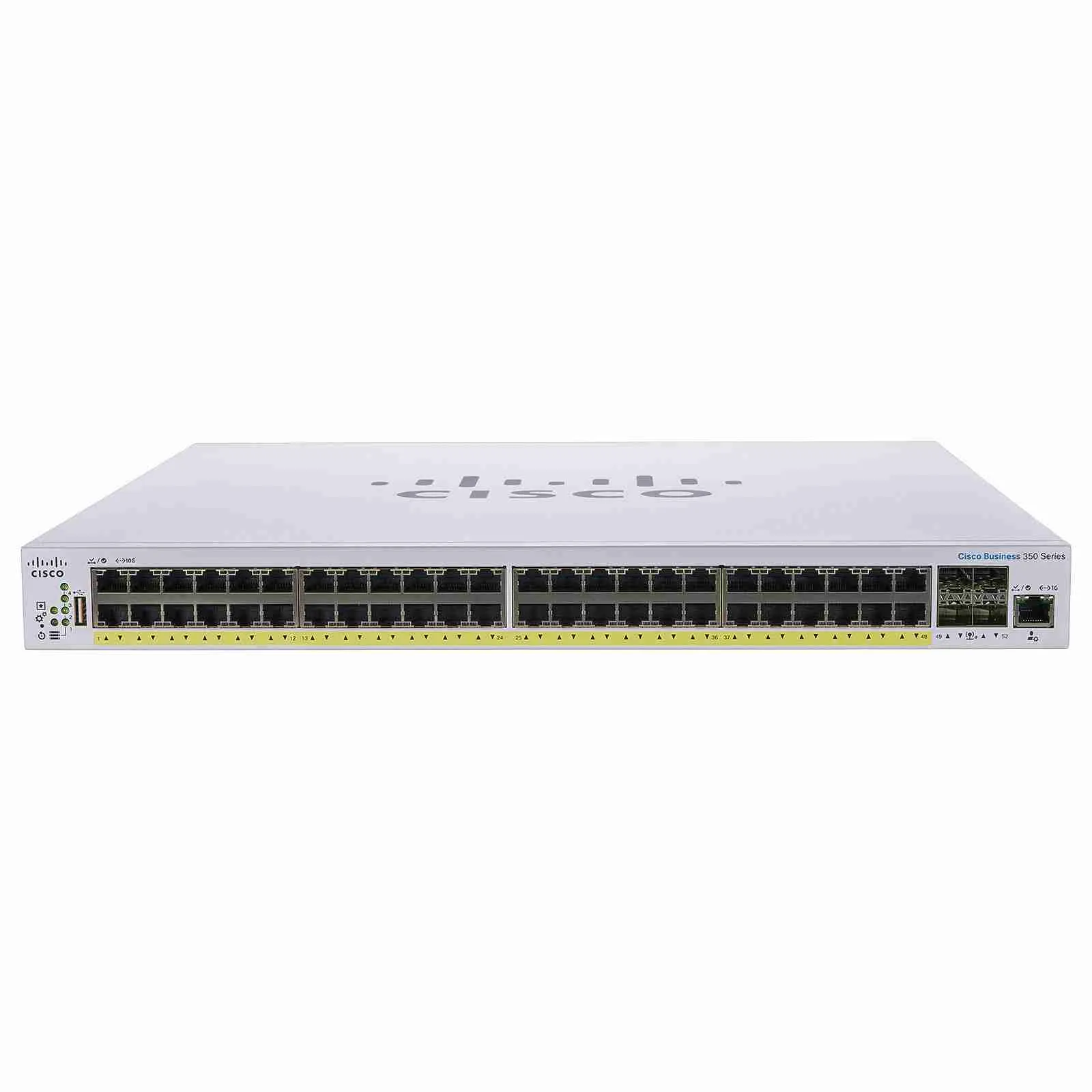

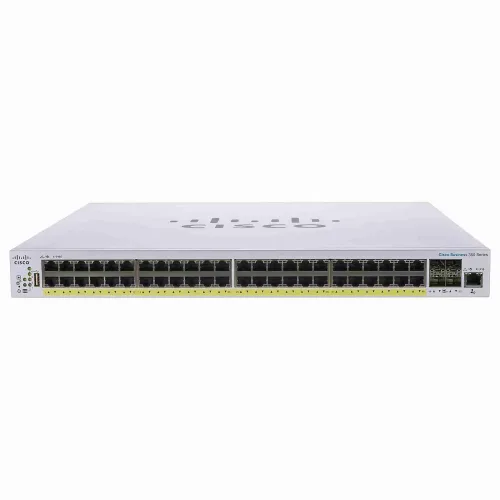

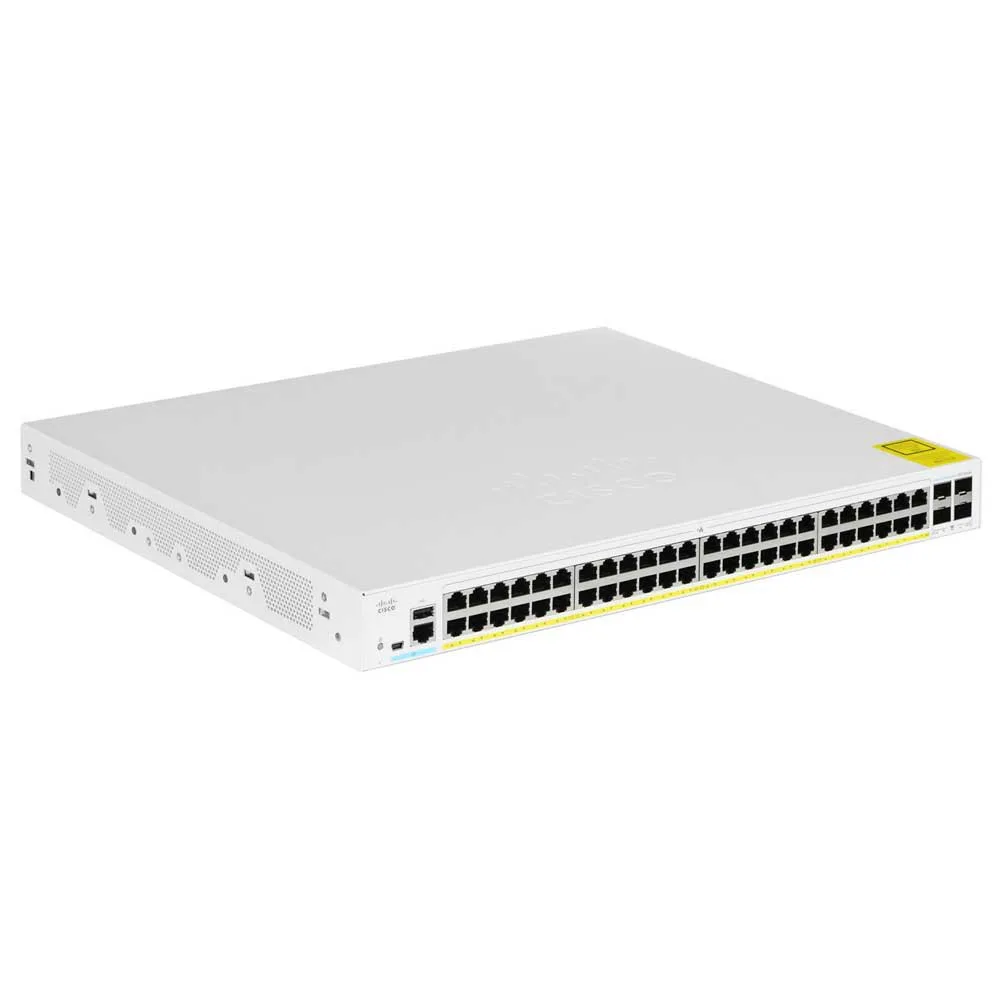

Cisco Business CBS350-48P-4G 48 Port Gigabit PoE Managed Switch.
A vital component of every small office network is the Cisco Business 350 Series Switches, a portfolio of reasonably priced managed switches that are a part of the Cisco Business range of network solutions. Sophisticated features speed up digital transformation, an intuitive dashboard makes network configuration easier, and ubiquitous security safeguards crucial corporate activities. The Cisco Business CBS350-48P-4G 48 Port Gigabit PoE Managed Network Switch lets you build a more productive, better-connected workforce by offering the perfect balance of price and functionality for small offices.
A family of managed Ethernet switches with a fixed configuration is called the Cisco Business 350 Series Switches. With models including Gigabit Ethernet connection ranging from 8 to 48 ports and Gigabit or 10-Gigabit uplinks, users may create the ideal building block for small office networks with maximum flexibility. Nevertheless, all Cisco Business 350 Series Switches support the advanced security management capabilities and network features you need to support enterprise-class data, voice, security, and wireless technologies. This is in contrast to other small business switching solutions that only offer managed network capabilities in the priciest models. These switches are also easy to install and set up, so you can benefit from the managed network services your company requires.
Up to 48 Power over Ethernet (PoE) ports are provided on Cisco Business 350 Series switches. This feature makes it easier to implement modern technologies like IP surveillance, WLAN, and IP telephony by enabling network endpoints to be connected and powered by a single Ethernet connection. IP phones and wireless access points don’t require separate power supplies to be installed, so you may benefit from sophisticated communications technologies faster and for less money. 802.3af and 802.3at PoE+ are supported by the models.
Cisco CBS350-48P-4G Specification
CBS350-48P-4G Specification |
|
Feature | Description |
Capacity in Millions of Packets per Second (mpps) (64-byte packets) | 77.38 |
Switching Capacity in Gigabits per Second (Gbps) | 104.0 |
Total System Ports | 52 x Gigabit Ethernet |
RJ-45 Ports | 48 x Gigabit Ethernet |
Combo Ports (RJ45 + Small form-factor pluggable [SFP]) | 4 x SFP |
Packet Buffer | 3 MB |
Unit dimensions (W x D x H) | 445 x 350 x 44 mm (17.5 x 13.78 x 1.73 in) |
Layer 3 | |
IPv4 routing | Wirespeed routing of IPv4 packets
Up to 990 static routes and up to 128 IP interfaces |
IPv6 routing | Wirespeed routing of IPv6 packets |
Layer 3 Interface | Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface |
Classless Interdomain Routing (CIDR) | Support for classless interdomain routing |
RIP v2 | Support for Routing Information Protocol version 2 for dynamic routing |
Policy-Based Routing (PBR) | Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL) |
DHCP Server | Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes
Support for DHCP options |
DHCP relay at Layer 3 | Relay of DHCP traffic across IP domains |
User Datagram Protocol (UDP) relay | Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets |
Quality of Service | |
Priority levels | 8 hardware queues |
Scheduling | Strict priority and Weighted Round-Robin (WRR) |
Rate limiting | Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing |
Congestion avoidance | A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization |
iSCSI traffic optimization | A mechanism for giving priority to iSCSI traffic over other types of traffic |
Green (power efficiency) | |
Energy Detect | Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up |
Cable length detection | Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables. |
EEE Compliant (802.3az) | Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
Disable port LEDs | LEDs can be manually turned off to save on energy |
Time-based port operation | Link up or down based on user-defined schedule (when the port is administratively up) |
Time-based PoE | PoE power can be on or off based on user-defined schedule to save energy |
General | |
Jumbo frames | Frame sizes up to 9K bytes. The default MTU is 2K bytes |
MAC table | 16K addresses |
Hardware | |
USB slot | USB Type-A slot on the front panel of the switch for easy file and image management |
Buttons | Reset button |
Cabling type | Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T |
LEDs | System, Link/Act, PoE, Speed |
Flash | 256 MB |
CPU | 800 MHz ARM |
DRAM | 512 MB |
Environmental | |
Storage temperature | -13° to 158°F (-25° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Warranty | Limited lifetime with next business day advance replacement (where available) |
Package Contents | |
● Cisco Business 350 Series Managed Switch
● Power Cord (Power adapter for select 8-port and 16-port SKUs) ● Mounting Kit ● Quick Start Guide |
|
Minimum Requirements | |
● Web browser: Chrome, Firefox, Edge, Safari
● Category 5e Ethernet network cable ● TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed |
