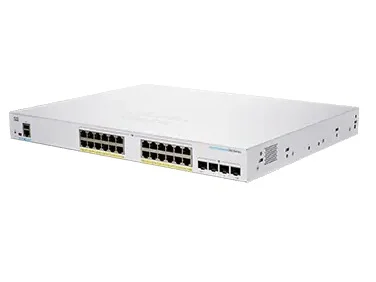

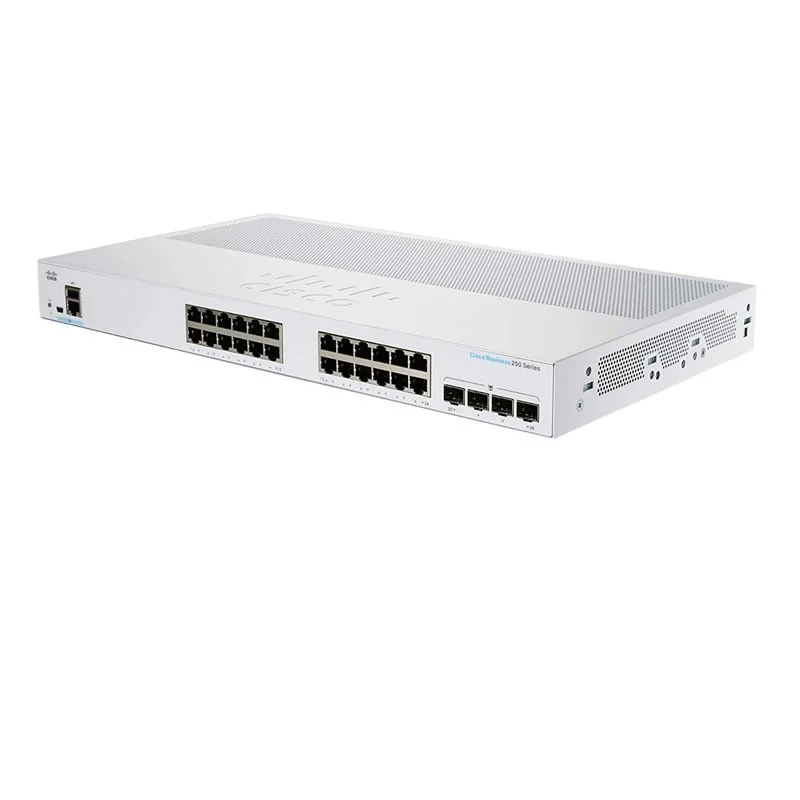

Cisco CBS250-24P-4G Smart 24-Port Gigabit POE Switch.
The latest generation of reasonably priced smart switches, the Cisco corporate 250 Series, combines robust corporate network functionality with a full feature set, outstanding performance, and dependability. These switches are less expensive than fully managed switches and offer extensive security features, flexible management choices, and Layer 3 static routing characteristics that considerably surpass those of an unmanaged or consumer-grade switch.
Cisco CBS250-24P-4G Features
Cisco CBS250-24P-4G Benefits
- Get the performance you need for your growing business with 24 Gigabit ports
- Power your PoE devices without the need for additional power adapters
- Add fiber optic connectivity to your network for improved performance and reliability
- Simplify network management with Layer 2 switching features
- Protect your network from threats with built-in security features
- Easily manage your switch with the simple and intuitive web-based management interface
CBS250-24P-4G Specification
CBS250-24P-4G Specification |
|
Feature | Description |
Capacity in millions of packets per second (mpps) (64-byte packets) | 41.66 |
Switching capacity in gigabits per second (Gbps) | 56.0 |
Power dedicated to PoE | 195W |
Number of ports that support PoE | 24 |
Total system ports | 28 Gigabit Ethernet |
RJ-45 ports | 24 Gigabit Ethernet |
Packet buffer | 1.5 MB |
Unit dimensions (W x D x H) | 445 x 299 x 44 mm (17.5 x 11.77 x 1.73 in) |
Layer 2 switching | |
VLAN | Support for up to 255 active VLANs simultaneously
Port-based and 802.1Q tag-based VLANs Management VLAN Guest VLAN |
Voice VLAN | Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers networkwide zero-touch deployment of voice endpoints and call control devices |
Layer 3 routing | |
IPv4 routing | Wire-speed routing of IPv4 packets
Up to 32 static routes and up to 16 IP interfaces |
IPv6 routing | Wire-speed routing of IPv6 packets |
Layer 3 interface | Configuration of Layer 3 interface on physical port, LAG, VLAN interface, or loopback interface |
Security | |
Secure Sockets Layer (SSL) | SSL encrypts all HTTPS traffic, allowing secure access to the browser-based management GUI in the switch |
Secure Shell (SSH) Protocol | SSH is a secure replacement for Telnet traffic. Secure Copy (SCP) also uses SSH. SSH v1 and v2 are supported. |
IEEE 802.1X (authenticator role) | Remote Authentication Dial-In User Service (RADIUS) authentication, guest VLAN, single/multiple host mode, and single/multiple sessions |
STP loopback guard | Provides additional protection against Layer 2 forwarding loops (STP loops) |
Secure Core Technology (SCT) | Ensures that the switch will receive and process management and protocol traffic no matter how much traffic is received |
Secure Sensitive Data (SSD) | A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plain text or encrypted is provided according to the user-configured access level and the access method of the user |
Trustworthy systems | Trustworthy systems provide a highly secure foundation for Cisco products
Run-time defenses (Executable Space Protection [X-Space], Address Space Layout Randomization [ASLR], Built-In Object Size Checking [BOSC]) |
Port security | Ability to lock source MAC addresses to ports and limit the number of learned MAC addresses |
RADIUS | Supports RADIUS authentication for management access. Switch functions as a client. |
Storm control | Broadcast, multicast, and unknown unicast |
DoS prevention | Denial-of-Service (DoS) attack prevention |
Multiple user privilege levels in CLI | Level 1, 7, and 15 privilege levels |
Access Control Lists (ACLs) | Support for up to 512 rules
Drop or rate limit based on source and destination MAC, VLAN ID or IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, TCP/UDP source and destination ports, 802.1p priority, Ethernet type, Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides Time-based ACLs supported |
Flash | 256 MB |
CPU | 800 MHz ARM |
DRAM | 512 MB |
Environmental | |
Power | 100 to 240V 50 to 60 Hz, internal, universal: CBS250-16T-2G, CBS250-16P-2G, CBS250-24T-4G, CBS250-24PP-4G, CBS250-24P-4G, CBS250-24FP-4G, CBS250-48T-4G, CBS250-48PP-4G, CBS250-48P-4G, CBS250-24T-4X, CBS250-24P-4X, CBS250-24FP-4X, CBS250-48T-4X, CBS250-48P-4X
100 to 240V 50 to 60 Hz, external: CBS250-8T-D, CBS250-8PP-D, CBS250-8T-E-2G, CBS250-8PP-E-2G, CBS250-8P-E-2G, CBS250-8FP-E-2G |
Certification | UL (UL 62368), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
Operating temperature | 32° to 122°F (0° to 50°C) for CBS250-8T-D and CBS250-8PP-D
23° to 122°F (-5° to 50°C) for other models |
Storage temperature | -13° to 158°F (-25° to 70°C) |
Operating humidity | 10% to 90%, relative, noncondensing |
Storage humidity | 10% to 90%, relative, noncondensing |
Warranty | Limited lifetime |
