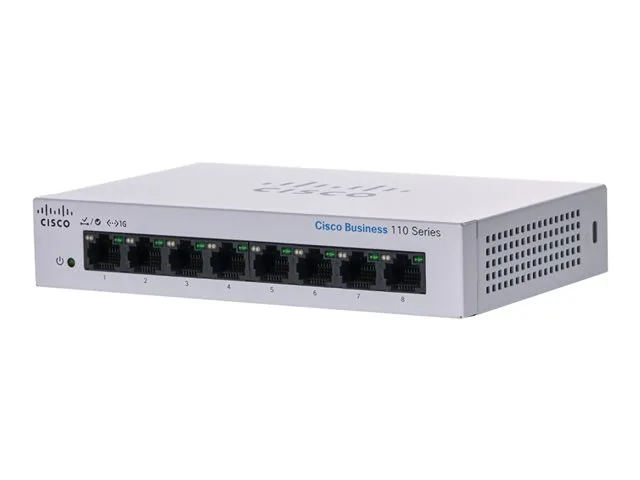

Cisco CBS110-8T-D Switch

KSh14,500.00

Model: CISCO CBS110-8T-D-UK
Ports: 8 x Gigabit Ethernet Ports
Power Source: Non-PoE (Power over Ethernet)
Mounting: Desktop
Plug-and-Play: Yes
Dimensions: Compact and space-saving

Description
Reviews (0)

Cisco CBS110-8T-D 8-Port Unmanaged Gigabit Switch Non PoE

The high-performing CISCO CBS110-8T-D Unmanaged 8-Port Gigabit Switch, offered from Dataworld Kenya, will help you expand the possibilities of your network. With its ability to improve network connectivity and optimize data transfer, this dependable switch is an ideal complement to any home or business network configuration.

Enhanced Network Performance: Bid farewell to latency and sluggish data transfers. This unmanaged switch maximizes productivity by lowering bottlenecks and improving network efficiency.

Smooth Communication: Easily connect your printers, IP cameras, PCs, and other devices. For more efficient operations, the switch makes it easier for devices to communicate with one another.

Economical Resolution: With the CISCO CBS110-8T-D-UK switch, you may increase the capacity of your network at a reasonable price without sacrificing performance. Because there are no extra power over Ethernet (PoE) features, you only pay for what you require.

Versatile Use: This switch is ideal for tech-savvy individuals setting up a home network or small business owners wishing to improve office connectivity.

Cisco CBS110-8T-D Features

Advanced Connectivity: This switch’s eight fast Gigabit Ethernet ports allow for smooth data transfer and effective device-to-device connectivity.

Plug-and-play Operation: Without requiring complicated setups, enjoy hassle-free installation and instant functionality. All you have to do is plug in your devices to enjoy improved connectivity.

Compact Desktop Design: The CBS110-8T-D-UK switch from Cisco has a compact desktop design that makes it ideal for use on your desk or in other small office spaces.

Robust Construction: This switch is made to last and was designed with longevity and dependable performance in mind.

CBS110-8T-D Specification

CBS110-8T-D Specification
Specifications	Description
Capacity in millions of packets per second (mpps) (64-byte packets)	11.9 mpps
Switching capacity in gigabits per second (Gbps)	16 Gbps
Total system ports	8 Gigabit Ethernet
RJ-45 ports	8 Gigabit Ethernet
Packet Buffer	2 Mbit
Unit dimensions (W x D x H)	160 x 104 x 30 mm (6.30 x 4.07 x 1.18 in)
General
Head-of-line (HOL) blocking	HOL blocking prevention
MAC table	2K addresses for CBS110-5T-D 8K addresses for all other models
Jumbo frame	9216 bytes
Quality of Service (QoS)	802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR)
Loop detection	Helps discover loops in the network to avoid broadcast storms
Cable diagnostics	Quickly identify and troubleshoot network cable faults and/or shorts
Media-dependent interface	Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X)
Standards	IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet
Hardware
LEDs	Power, link/activity (cable diagnostics, loop detection), Gigabit, ^* PoE, ^* Max PoE. ^*if present
Cabling type	Category 5e or better
Mounting options	Desktop, wall-mount or rack mount
Physical security lock	Kensington lock slot
Flash	16 MB for CBS110-16T, CBS110-16PP 8 MB for CBS110-24T, CBS110-24PP
CPU	400 MHz ARM for CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP
CPU memory	128 MB for CBS110-16T, CBS110-16PP 64 MB for CBS110-24T, CBS110-24PP
Supported SFP modules	SKU	Media	Speed	Maximum distance
	MGBSX1	Multimode fiber	1000 Mbps	500 m
	MGBLX1	Single-mode fiber	1000 Mbps	10 km
	MGBLH1	Single-mode fiber	1000 Mbps	40 km
	MGBT1	UTP cat 5e	1000 Mbps	100 m
Environmental
Power	CBS110-5T-D, CBS110-8T-D: DC 12V, 1.0A CBS110-8PP-D: DC 48V, 1.25A CBS110-16T, CBS110-16PP, CBS110-24T, CBS110-24PP: 110-240VAC, 50-60 Hz, internal, universal
Green (power efficiency)	Supports IEEE 802.3az on all copper Gigabit Ethernet ports
Compliance/certifications	UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B^* ^*select models
Operating temperature	32° to 104°F (0° to 40°C)
Storage temperature	–4° to 158°F (–20° to 70°C)
Operating humidity	10% to 90%, relative, noncondensing
Storage humidity	5% to 90%, relative, noncondensing
Warranty	Limited lifetime
Package contents
● Cisco Business 110 Series switch ● Power cord or adapter ● Quick start guide ● Mounting kit
Minimum requirements
● Devices supporting 802.3 Ethernet, 802.3u Fast Ethernet, or 802.3ab Gigabit Ethernet ● Cat5e or better Ethernet cable ● Network interface card for each computer
