-10%

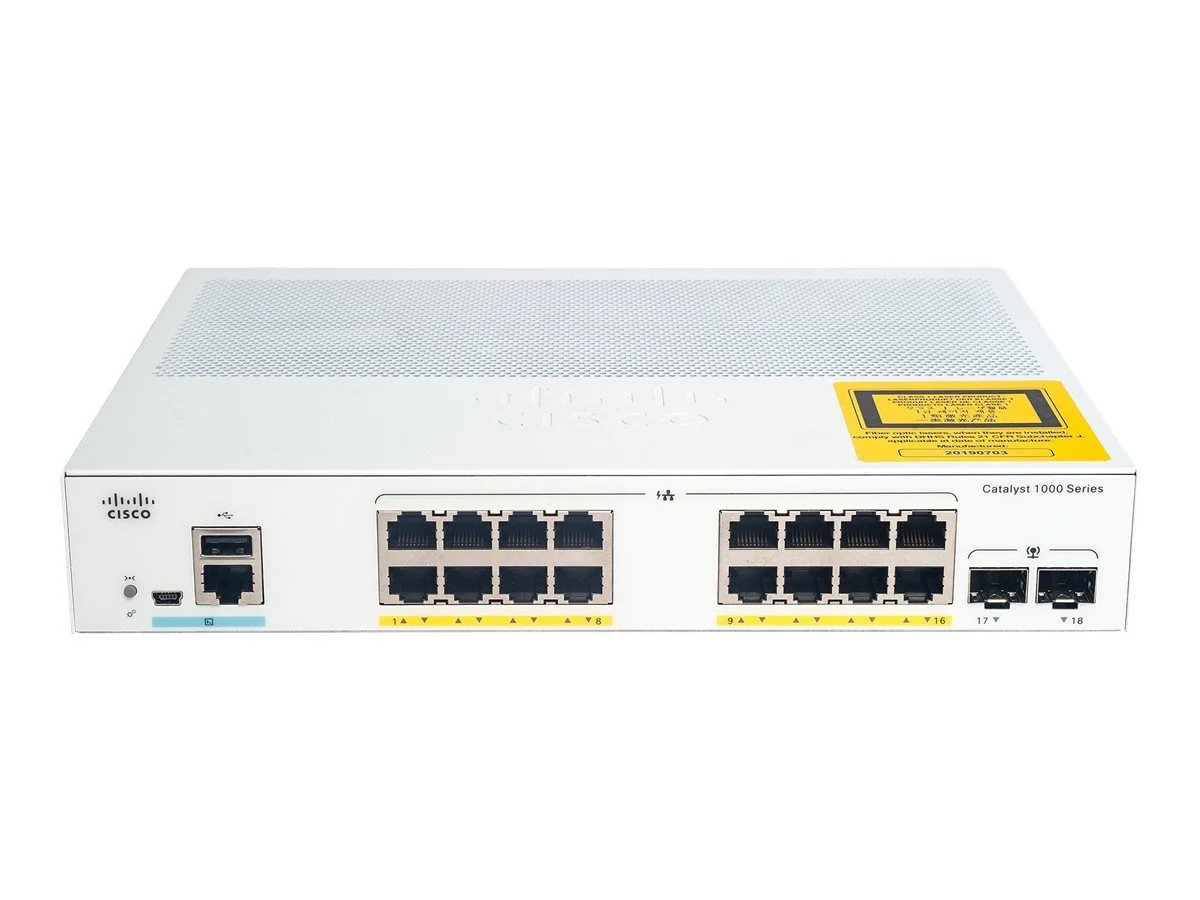

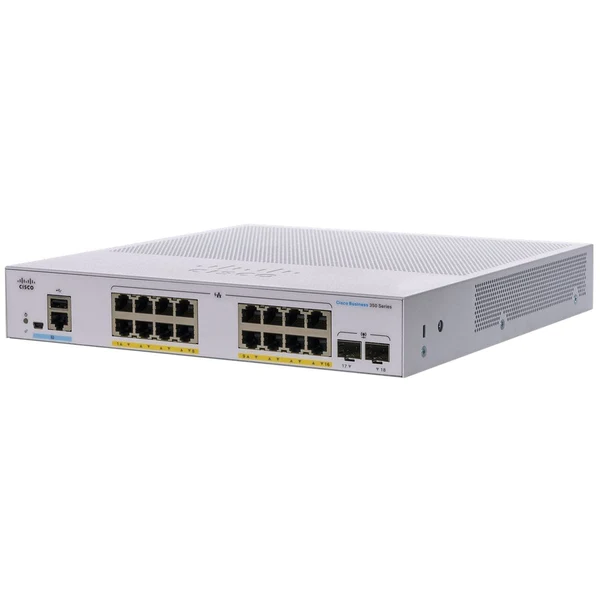

Cisco Catalyst C1000-16P-2G-L-02 switch in kenya

Cisco Catalyst C1000-16P-2G-L Switch

Original price was: KSh110,000.00.Current price is: KSh98,999.00.

Quick Specs

Product Code	C1000-16P-2G-L
Description	16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP uplinks
Gigabit Ethernet ports	16
Uplink interfaces	2 SFP
PoE+power budget	120W
Fanless	Y
Dimensions (WxDxH in inches)	10.56 x 11.69 x 1.73
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Forwarding bandwidth	18 Gbps
Switching bandwidth	36 Gbps
Forwarding rate(64—byte L3 packets)	26.78 Mpps

Description
Reviews (0)

Cisco Catalyst C1000-16P-2G-L 16 port Network Switch.

A network switch intended for small and medium-sized enterprises (SMBs) or branch offices is the Cisco Catalyst C1000-16P-2G-L. This switch, which is a member of Cisco’s Catalyst 1000 Series, offers a small, dependable, and reasonably priced option for developing and growing network infrastructures. The following outlines the main attributes and technical details of the 16-port Cisco Catalyst C1000-16P-2G-L network switch:

Cisco Catalyst C1000-16P-2G-L Switch Features

16 Gigabit Ethernet ports make up the port configuration. These ports provide fast connectivity for devices like IP phones, printers, computers, and other network equipment.

Power over Ethernet (PoE): This switch can supply data connectivity and power to PoE-enabled devices, such as IP phones and security cameras. The “P” in the model name denotes that this switch supports PoE. This eliminates the need for additional power sources and streamlines cabling.

Two Gigabit Ethernet uplink ports are included in the model name, denoted by the letter “2G,” which enables network workers to connect to higher-level switches or routers.

Layer 2 Switching: This switch is appropriate for VLAN administration and simple network switching since it primarily functions at Layer 2 (Data Link Layer) of the OSI model.

Fanless Design: The Cisco Catalyst C1000-16P-2G-L is quiet and appropriate for installation in noise-sensitive situations because of its fanless design.

Rack-Mountable: This switch can be installed in network equipment cabinets or racks because it is usually made to be rack-mounted.

Low Power Consumption: Cisco frequently incorporates energy efficiency into the design of their switches, which lowers operating expenses and has a positive environmental impact.

Advanced network administration and security functions are provided by the Cisco IOS (Internetwork Operating System) software, which is installed on the switch.

Cisco C1000-16P-2G-L Specification

C1000-16P-2G-L Specification
Description	16x 10/100/1000 Ethernet PoE+ ports and 120W PoE budget, 2x 1G SFP uplinks
Gigabit Ethernet ports	16
Uplink interfaces	2 SFP
PoE+power budget	120W
Fanless	Y
Dimensions (WxDxH in inches)	10.56 x 11.69 x 1.73
Console ports
RJ-45 Ethernet	1
USB mini-B	1
USB-A port for storage and Bluetooth console	1
Memory and processor
CPU	ARM v7 800 MHz
DRAM	512 MB
Flash memory	256 MB
Performance
Forwarding bandwidth	18 Gbps
Switching bandwidth	36 Gbps
Forwarding rate(64—byte L3 packets)	26.78 Mpps
Unicast MAC addresses	16000
IPv4 unicast direct routes	542
IPv4 unicast indirect routes	256
IPv6 unicast direct routes	414
IPv6 unicast indirect routes	128
IPv4 static routes	16
IPv6 static routes	16
IPv4 multicast routes and IGMP groups	1024
IPv6 multicast groups	1024
IPv4/MAC security ACEs	600
IPv6 security ACEs	600
Maximum active VLANs	256
VLAN IDs available	4094
Maximum STP instances	64
Maximum SPAN sessions	4
MTU-L3 packet	9198 bytes
Jumbo Ethernet frame	10,240 bytes
Dying Gasp	Yes
MTBF in hours (data)	2,165,105
MTBF in hours (PoE)	706,983
MTBF in hours (Full PoE)	\
Environmental
Operating temperature Seal level	-5 to 50 deg C*
Up to 5,000ft (1500 m)	-5 to 45 deg C
Upto 10,000 (3000 m)	-5 to 40 deg C
Operating altitude	10,000 ft (3,000m)
Operating relative humidity	5% to 90% at 40C
Storage temperature	-13 to 158F (-25 to 70C)
Storage altitude	15,000 ft (4500m)
Storage relative humidit	5% to 95% at 65C
*Note: 50C operation is supported for short term operation only; GLC-BX-D/U and CWDM optics cannot support 50C operation; Minimum ambient temperature for cold start is at 0C (32F)
Safety and compliance
Safety	UL 60950-1 Second Edition, CAN/CSA-C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, AS/NZS 60950-1, IEC 62368-1, UL 62368-1 GB 4943.1-2011
EMC: Emissions	47CFR Part 15 Class A, AS/NZS CISPR32 Class A, CISPR32 Class A, EN55032 Class A, ICES-003 Class A, VCCI-CISPR32 Class A, EN61000-3-2, EN61000-3-3, KN32 Class A, CNS13438 Class A
EMC: Immunity	EN55024 (including EN 61000-4-5), EN300386, KN35
Environmental	Reduction of Hazardous Substances (RoHS) including Directive 2011/65/EU
Telco	Common Language Equipment Identifier (CLEI) code
U.S. government certifications	TBD
Connectors and interfaces
Ethernet interfaces	* 10BASE-T ports: RJ-45 connectors, 2-pair Category 3, 4, or 5 Unshielded Twisted Pair (UTP) cabling * 100BASE-TX ports: RJ-45 connectors, 2-pair Category 5 UTP cabling * 1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling * 1000BASE-T SFP-based ports: RJ-45 connectors, 4-pair Category 5 UTP cabling
Indicator LEDs	* Per-port status: link integrity, disabled, activity * System status: system
Console cables	* CAB-CONSOLE-RJ45 Console cable 6 ft. with RJ-45 * CAB-CONSOLE-USB Console cable 6 ft. with USB Type A and mini-B connectors
Power	* Use the supplied AC power cord to connect the AC power connector to an AC power outlet * Models have external power supply
